Sedimentary Facies Machine Learning - XGBoost with Intelligent Bayesian Optimization

Posted in Projectblog ∙ 23 mins read

Let the Computer name the Formation

Introduction
Let’s get going!
Step 1: Load
Step 2: Explore
Step 3: Augmentation
4. Train, then Predict Test Facies
Step 5: Evaluate
Conclusion
Acknowledgements:
References

Introduction

Structured data classification is one of the important and typical task in supervised machine learning (ML). Assigning categories to structured data, which can be anything stored in a spereadsheet, relational database content (SQL), csv file etc. Data conetents may be names, dates, addresses, credit card numbers, stock information, geolocation, etc. In this article, I would like to demonstrate how we can do data classification on geophysical data using Python, XGBoost, and a little bit of Scikit-Optimize to predict sedimentological facies.

The Society of Exploration Geophysicists (SEG), Matt Hall (Agile), and Brendon Hall (Enthought) ran in 2016 a competition on who can create the best Machine Learning model in classifying sedimentary facies in several wells using wireline measurements. For the dataset provided, a subject-matter expert (e.g., sedimentologist) manually described core sections and gave the facies names, which is calles labeling. This complete dataset can be used to train a Machine Learning Model. Note that in Artificial Intelligence rules are not hard-coded as in traditional programming, rather we give the computer the inputs and outputs, and the let it figure out the rules. These rules can then be used to make predictions on new, unseen, data. In this case we can then use new wireline data to predict sedimentological facies.

The dataset, along with instructions were made available online in an article in SEG The Leading Edge “Facies classification using machine learning”. The article included a link to some starter code in a Jupyter notebook with a simple Support Vector Machine model that had to be surpassed in accuracy.

In 2017, the results of the SEG competition were published in the SEG Leading Edge journal including all submission files for contestants to learn from each other. Teams were allowed to send new and improved models until the deadline. Two years later Brandon Hall penned a brief lookback on the merits, aftermath, and innovations that have been sparked by the ML contest he co-organized.

The goal of this discussion is working through what a good submission did to improve on the starter code, but does not necessarily have to be the winning submission. Since the ML contest took place the XGBoost ensemble learning algorithm has taken on larger popularity. However, it not that easy to use, since there are many, many hyperparameter to tune. For that reason I decided to utilize Scikit Optimize, which was released first in August 2016, and I would like to see what benefits it has over Grid Search or Random Search, which was commonly used at the time of the ML contest.

What does the data set look like? Originally, the SEG data were provided by the University of Kansas on the Hugoton and Panoma gas fields in SW Kansas ( Tim Carr and Robert S. Sawin (1996) Hugoton Natural Gas Area of Kansas, Kansas Geological Survey, Public Information Circular (PIC) 5). Encountered facies are interbedded deposits of carbonate (limestone and dolomite) and shale. The train dataset contains over 4000 training samples from ten different wells that were measured at half-foot downhole distances. These samples contain seven features (predictor variables). The seven features are: gamma ray (GR), resistivity (ILD_log10), photoelectric effect (PE), density/neutron porosity difference (DeltaPHI), average density/neutron porosity (PHIND), nonmarine/marine indicator (NM_M), and relative position (RELPOS). The test set was labeled by geologists with the correct facies information. Additionally, a test set of 800 samples was provided containing two wells but without facies labels. Goal is to train a classifier on the training set and predict correct facies on the test set. However, the true test labels remain unknown to the contestants. The published test-set F1 scores were calculated by the organizers. The best submitted classifier had an F1 score of 0.641 on the test set! This is something we can work with and strive to beat.

Facies	Description	Label	Adjacent facies
1	Nonmarine sandstone	SS	2
2	Nonmarine coarse siltstone	CSiS	1,3
3	Nonmarine fine siltstone	FSiS	2
4	Marine siltstone and shale	SiSh	5
5	Mudstone	MS	4,6
6	Wackestone	WS	5,7,8
7	Dolomite	D	6,8
8	Packstone-grainstone	PS	6,7,9
9	Phylloid-algal bafflestone	BS	7,8
11	Marine sandstone⁺	N/A	4,6,8

⁺Only present in test set, cannot be trained.

Prerequisites to follow this example are Python version 3 and Jupyter notebook. You can just install Anaconda and it will get everything for you. Also, little bit of Python and ML basics including data classification is required. We will be using XGBoost and Scikit-learn (Python) libraries for our example.

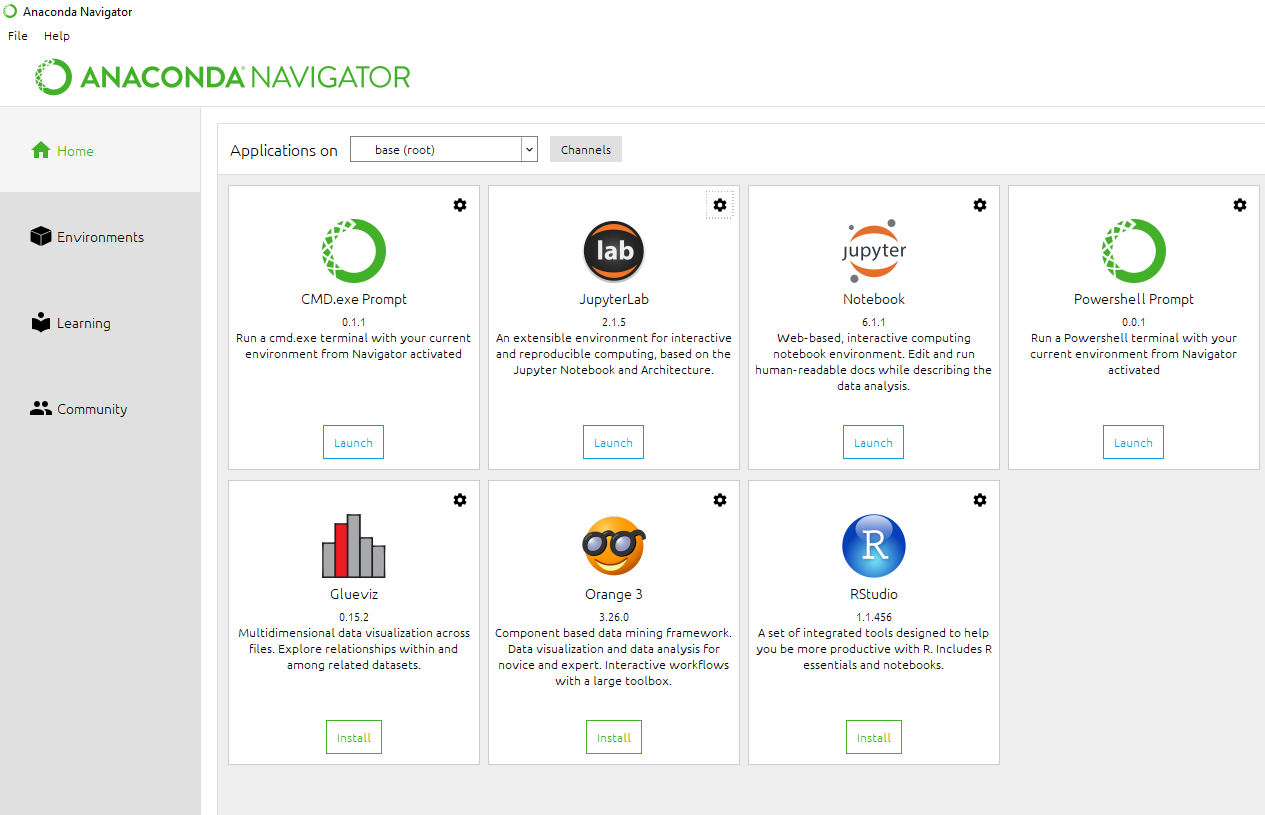

AnacondaNavigatorHomescreen

Having installed Anaconda, you open the Anaconda Navigator and land on the Home screen. There, click the Install button for JupyterLab to make it accessible in future. Next, update all the libraries includied. Click on the Anaconda home screen on “CMD.exe Prompt” and enter conda update --all --y. This will online-update all the pre-installed libraries. But you will need more for this project that will install in the latest version.

Downloads:

The classification problem can be divided into the following steps:

Load
Explore
Augmentation
Train, then Predict Test Facies
Evaluate

Let’s get going!

Open Jupyter Lab (see screenshot above) and navigate in the file system pane on the left to the folder of the downloaded notebok Import necessary libraries. If you never worked with these then you may have to install them first with !conda install matplotlib for example.

%matplotlib inline
import seaborn as sns
import matplotlib.pyplot as plt
import matplotlib as mpl

import numpy as np
import pandas as pd
from sklearn.impute import SimpleImputer
from sklearn import preprocessing

from xgboost.sklearn import XGBClassifier
from skopt import BayesSearchCV
from skopt.space import Real, Categorical, Integer
from scipy.signal import medfilt

from sklearn.metrics import f1_score

from classification_utilities import make_facies_log_plot
from classification_utilities import compare_facies_plot

Step 1: Load

First, read the training data from csv to a Pandas dataframe, define the logging parameter names, facies names, and some standardized facies colors. At the end of this cell, impute all missing values (especially in the “PE” parameter) with the average of the parameter.

data = pd.read_csv('facies_vectors.csv')

# Define groups of parameters
# Wireline measurements -> lnput features
feature_names = ['GR', 'ILD_log10', 'DeltaPHI', 'PHIND', 'PE', 'NM_M', 'RELPOS']
# Geological descriptins -> labels
facies_names = ['SS', 'CSiS', 'FSiS', 'SiSh', 'MS', 'WS', 'D', 'PS', 'BS']
# Color codes
facies_colors = ['#F4D03F', '#F5B041','#DC7633','#6E2C00', '#1B4F72','#2E86C1', '#AED6F1', '#A569BD', '#196F3D']

# Store features and labels
X = data[feature_names].values
y = data['Facies'].values

# Store well labels and depths
well = data['Well Name'].values
depth = data['Depth'].values

# Fill 'PE' missing values with mean
imp = SimpleImputer(missing_values=np.nan, copy=False, strategy="mean")
imp.fit(X)
X = imp.transform(X)

Step 2: Explore

Data Exploration: Feature distribution

Each parameter compared with each other. Colors pertain to facies type.

def plot_feature_stats(X, y, feature_names, facies_colors, facies_names):

    # Remove NaN
    nan_idx = np.any(np.isnan(X), axis=1)
    X = X[np.logical_not(nan_idx), :]
    y = y[np.logical_not(nan_idx)]

    # Merge features and labels into a single DataFrame
    features = pd.DataFrame(X, columns=feature_names)
    labels = pd.DataFrame(y, columns=['Facies'])
    for f_idx, facies in enumerate(facies_names):
        labels[labels[:] == f_idx] = facies
    data = pd.concat((labels, features), axis=1)

    # Plot features statistics
    facies_color_map = {}
    for ind, label in enumerate(facies_names):
        facies_color_map[label] = facies_colors[ind]

    sns.pairplot(data, hue='Facies', palette=facies_color_map, hue_order=list(reversed(facies_names)))

plot_feature_stats(X, y, feature_names, facies_colors, facies_names)

plot_feature_stats graph

Data Exploration: Facies distribution

How abundant are facies across all wells?

# workaround to increase figure size
mpl.rcParams['figure.figsize'] = (20.0, 10.0)
inline_rc = dict(mpl.rcParams)

# Data Exploration: Facies per well
for w_idx, w in enumerate(np.unique(well)):
    # Define plot ID in mosaic
    ax = plt.subplot(3, 4, w_idx+1)

    # Define histogram settings
    hist = np.histogram(y[well == w], bins=np.arange(len(facies_names)+1)+.5)
    plt.bar(np.arange(len(hist[0])), hist[0], color=facies_colors, align='center')

    # Cosmetic settings
    ax.set_xticks(np.arange(len(hist[0])))
    ax.set_xticklabels(facies_names)
    ax.set_title(w)

facies per well graph

Data Exploration: Features per well present

How complete is the data after imputing?

for w_idx, w in enumerate(np.unique(well)):
    # Define plot ID in mosaic
    ax = plt.subplot(3, 4, w_idx+1)

    # Define histogram settings
    hist = np.logical_not(np.any(np.isnan(X[well == w, :]), axis=0))
    plt.bar(np.arange(len(hist)), hist, color=facies_colors, align='center')

    # Cosmetic settings
    ax.set_xticks(np.arange(len(hist)))
    ax.set_xticklabels(feature_names)
    ax.set_yticks([0, 1])
    ax.set_yticklabels(['miss', 'hit'])
    ax.set_title(w)

param completeness graph

Show the first well in the training set!

make_facies_log_plot(data[data['Well Name'] == 'SHRIMPLIN'], pred_column='Facies', facies_colors=facies_colors)

shrimplin graph

Step 3: Augmentation

Augmentation is a crucial step in improving prediction quality. The process takes features and depths and calculates new features with a sliding window moving across depth.

# Feature windows concatenation function
def augment_features_window(X, N_neig):

    # Parameters
    N_row = X.shape[0]
    N_feat = X.shape[1]

    # Zero padding
    X = np.vstack((np.zeros((N_neig, N_feat)), X, (np.zeros((N_neig, N_feat)))))

    # Loop over windows
    X_aug = np.zeros((N_row, N_feat*(2*N_neig+1)))
    for r in np.arange(N_row)+N_neig:
        this_row = []
        for c in np.arange(-N_neig,N_neig+1):
            this_row = np.hstack((this_row, X[r+c]))
        X_aug[r-N_neig] = this_row

    return X_aug


# Feature gradient computation function
def augment_features_gradient(X, depth):

    # Compute features gradient
    d_diff = np.diff(depth).reshape((-1, 1))
    d_diff[d_diff==0] = 0.001
    X_diff = np.diff(X, axis=0)
    X_grad = X_diff / d_diff

    # Compensate for last missing value
    X_grad = np.concatenate((X_grad, np.zeros((1, X_grad.shape[1]))))

    return X_grad


# Feature augmentation function
def augment_features(X, well, depth, N_neig=1):

    # Augment features
    X_aug = np.zeros((X.shape[0], X.shape[1]*(N_neig*2+2)))
    for w in np.unique(well):
        w_idx = np.where(well == w)[0]
        X_aug_win = augment_features_window(X[w_idx, :], N_neig)
        X_aug_grad = augment_features_gradient(X[w_idx, :], depth[w_idx])
        X_aug[w_idx, :] = np.concatenate((X_aug_win, X_aug_grad), axis=1)

    # Find padded rows
    padded_rows = np.unique(np.where(X_aug[:, 0:7] == np.zeros((1, 7)))[0])

    return X_aug, padded_rows

4. Train, then Predict Test Facies

The first cell contains the XGBoost classifier controlled by the Scikit-Optimize (Skopt) “BayesSearchCV” function.

There are two main differences when performing Bayesian Optimization using Skopt’s BayesSearchCV. When creating your search space you need to make each hyperparameter’s space a probability distribution as opposed to using lists like GridSearchCV. Skopt makes this easy for you with their library skopt.space which lets us import “Real”, “Integer”, and “Categorical” to create the probability distributions.

Real: Continuous hyperparameter space.
Integer: Discrete hyperparameter space.
Categorical: Categorical hyperparameter space.

Below you can see examples of using both the categorical and integer functions. For categorical spaces simply input a list inside the function. For Integer spaces input the minimum and maximum values you want BayesSearchCV to explore.

The function on_step allows us to implement a form of early stopping (if needed) and also prints out the score after each iteration.

search_space = {"colsample_bylevel": Real(0.6,1),
                "colsample_bytree":Real(0.6, 0.8),
                "gamma": Real(0.01,5),
                "learning_rate": Real(0.0001, 1),
                "max_delta_step": Real(0.1, 10),
                "max_depth": Integer(3, 15),
                "min_child_weight": Real(1, 500),
                "n_estimators": Integer(10,200),
                "reg_alpha": Real(0.1,100),
                "reg_lambda": (0.1, 100),
                "subsample": (0.4, 1.0)
                }

def on_step(optim_result):
    """
    Callback meant to view scores after
    each iteration while performing Bayesian
    Optimization in Skopt"""
    score = XGB_bayes_search.best_score_
    print("best train score: {}".format(score))


# Train and test a classifier
def train_and_test(X_tr, y_tr, X_ts, well_ts):

    # Feature normalization
    scaler = preprocessing.RobustScaler(quantile_range=(25.0, 75.0)).fit(X_tr)
    X_tr = scaler.transform(X_tr)
    X_ts = scaler.transform(X_ts)

    # Train classifier
    clf = XGBClassifier()
    global XGB_bayes_search
    XGB_bayes_search = BayesSearchCV(clf, search_space, n_iter=75, scoring="f1_weighted", n_jobs=-1, cv=5)

    XGB_bayes_search.fit(X_tr, y_tr, callback=on_step)

    # Test classifier
    y_ts_hat = XGB_bayes_search.predict(X_ts)

    # Clean isolated facies for each well
    for w in np.unique(well_ts):
        y_ts_hat[well_ts==w] = medfilt(y_ts_hat[well_ts==w], kernel_size=5)

    return y_ts_hat

The following cell brings everything together and starts the XGBoost algorithm and predicts test and train facies labels.

# Load testing data
test_data = pd.read_csv('validation_data_nofacies.csv')

# Prepare training data
X_tr = X
y_tr = y

# Augment features
X_tr, padded_rows = augment_features(X_tr, well, depth)

# Removed padded rows
X_tr = np.delete(X_tr, padded_rows, axis=0)
y_tr = np.delete(y_tr, padded_rows, axis=0)

# Prepare test data
well_ts = test_data['Well Name'].values
depth_ts = test_data['Depth'].values
X_ts = test_data[feature_names].values

# Augment features
X_ts, padded_rows = augment_features(X_ts, well_ts, depth_ts)

# Predict test labels
y_ts_hat = train_and_test(X_tr, y_tr, X_ts, well_ts)
# Add prediction to test_data for plotting
test_data['Prediction'] = y_ts_hat

# Predict train labels,
y_tr_hat = XGB_bayes_search.predict(X_tr)
# Add prediction to data for plotting
data = data.join(pd.DataFrame(y_tr_hat), how='inner')
data.rename(columns={0: "Prediction"}, inplace=True)

print("\nBest score: {}\nBest params: {}".format(XGB_bayes_search.best_score_,XGB_bayes_search.best_params_))

Hyperparameter searching can be tedious, but there are tools that can do the tedious work for you. For example, Bayesian Optimization improves accuracy similarly as a Grid Search or Randomized Search, but automatically improves accuracy within the ranges given in the search space. Note that the Bayesian Optimization starts with randomized hyperparameters. This means it can sometimes require more iterations to arrive at the best accuracy possible. In my experience, the algorithm could reach maximum after 50 iterations, sometimes after 150. Play with the iterations and avoid excessive training durations since it takes longer and longer to improve the score. There will be a point of diminishing returns.

The train F1 achieved here was 0.571.

Step 5: Evaluate

The F1 score of predicted test labels vs ground truth test labels was calculated by the organizers. Luckily, the correct test facies labels were provided in the GitHub repo after the contest concluded so we can calculate this by ourselves using the F1 scorer provided in Scikit-Learn. The F1 Scorer receives the variables y_hat_ts and y_ts_true.

# F1 score on test wells

y_ts_true = pd.read_csv('blind_stuart_crawford_core_facies.csv')
# rename columns for merging
y_ts_true.rename(columns={'Depth.ft': 'Depth', 'LithCode': 'Facies'}, inplace=True)
# remove facies "11", since that was not in training
y_ts_true = y_ts_true[y_ts_true!=11]

test_data = test_data.merge(y_ts_true, on='Depth', how='inner')
test_data.dropna(inplace=True)
print("F1_weighted: ",f1_score(test_data['Facies'], test_data['Prediction'], average='weighted'))

The test F1 achieved here was 0.42.

Place	Team	Train F1 Score	Test F1 Score
N/A	ChristianHallerX	0.571	0.478
1	LA_Team (Mosser, de la Fuente)	???	0.641
2	ispl (Bestagini, Tuparo, Lipari)	0.564	0.640
3	SHandPR	0.560	0.631
4	HouMath	0.563	0.630
5	esaTeam	0.566	0.629

It is unclear how the organizers calculated the Test F1. Normally, test/validation scores (unknown data) are lower than training scores but here they are higher. What is wrong here?

# Compare true and predicted facies on first TREAINING well
compare_facies_plot(data[data['Well Name'] == 'SHRIMPLIN'], pred_column='Prediction', facies_colors=facies_colors)

shrimplin comparison graph

# Compare true and predicted facies on first TEST well
compare_facies_plot(test_data[test_data['Well Name'] == 'STUART'], pred_column='Prediction', facies_colors=facies_colors)

stuart comparison graph

# Compare true and predicted facies on second TEST well
compare_facies_plot(test_data[test_data['Well Name'] == 'CRAWFORD'], pred_column='Prediction', facies_colors=facies_colors)

crawford comparison graph

Conclusion

Due to the proprietary nature of many geoscience data, the data size is limited to what was provided in the SEG ML contest, which is a relatively small data set compared to what treasure troves the AI pioneers in the tech sector can dispose of. Many of the algorithms common today work bettter (generalize more reliably) with massive data sets that are much larger than the 4000 samples used here. While Scikit-Optimize and XGBoost did not dramatically improve the accuracy of the model, it does simplify the model setup and resulted in a best score for the training set F1. However, this provides a stepping stone for geoscientists to further explore and apply machine learning techniques to lithofacies prediction, while employing their domain knowledge to further enhance the speed and accuracy of predictive models. Potential applications include validating velocity models for seismic data, fault interpretation and well top interpretation.

Acknowledgements:

Thanks to Matt Hall (Agile) and Brendon Hall (Enthought) for organizing the SEG Machine Learning challenge and the Kansas Geological Survey for their data.

References

Hall, B. (2016). Facies classification using machine learning. The Leading Edge, 35(10), 906-909.
Friedman, J. H. (2000) Greedy function approximation: A gradient boosting machine: Annals of Statistics, 29, 1189–1232.

Sedimentary Facies Machine Learning - XGBoost with Intelligent Bayesian Optimization

Introduction

Let’s get going!

Step 1: Load

Step 2: Explore

Data Exploration: Feature distribution

Data Exploration: Facies distribution

Data Exploration: Features per well present

Step 3: Augmentation

4. Train, then Predict Test Facies

Step 5: Evaluate

Conclusion

Acknowledgements:

References

Christian Haller Ph.D.

Error

Introduction

Let’s get going!

Step 1: Load

Step 2: Explore

Data Exploration: Feature distribution

Data Exploration: Facies distribution

Data Exploration: Features per well present

Step 3: Augmentation

4. Train, then Predict Test Facies

Step 5: Evaluate

Conclusion

Acknowledgements:

References

Templates (for web app):

Error
